Description:
This is 2 stage stainless steel millipore filter used for beer/Wine or other beverage. It has 2 2-stage filtration cartridge which you can put 2 sizes of millipore filters with size of 0.1um or 0.2um, or just use one of them as 1 stage filter.
It will perfectly remove impurities from liquid like yeast or sediment to clarify the beer/wine or other liquid you want to filtrate.

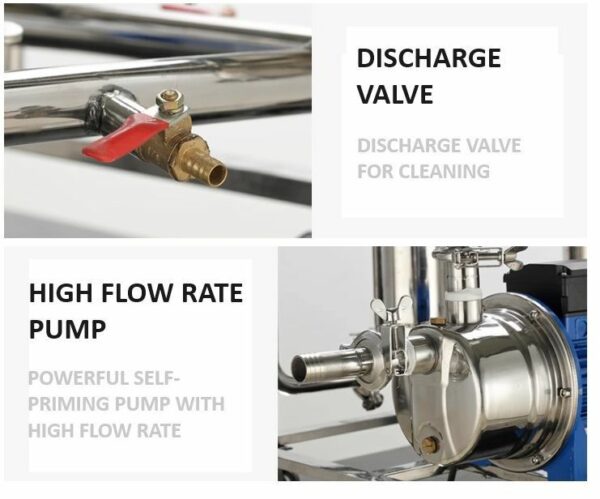

The filter run by a self-priming pump with a suction of 8-9 meters and 15 meters head to suck the liquid from the tank/vessel and generate pressure in the filtration cartridge to let the filtrated liquid go through the PP filter.

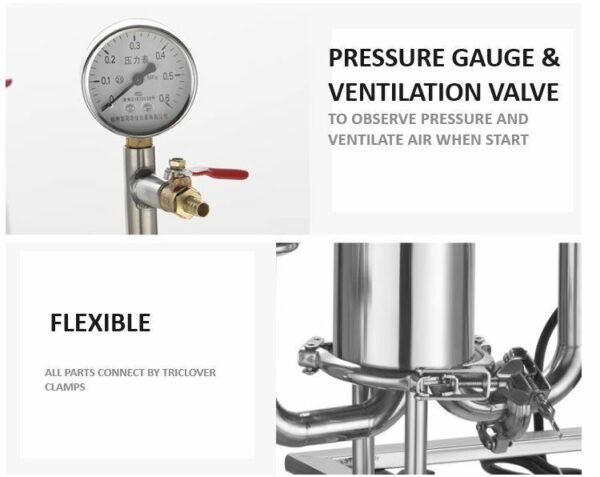

There’s a pressure gauge on top of the stainless steel cartridge so that you can monitor how is the filtration run with increasing of the pressure showed in the gauge. In general, the pressure will increase with the blocking of the filters with the timing, and you need stop filtration and clean the filter if the pressure is too high.
The cartridges can be re-used many times after you cleaned them properly, the standard self-life of the cartridge is about 6-12 month, depending on how often you use the filter.
The standard pump flow is about 500L-1000L/H, however, this is only the flow of the pump. Depending on how clean of the beer/wine or beverage to be filtrated and what the size of millipore of the filter, the filtration rate could be around 100-500L/H
Features:
All stainless steel for the filter cover and pipes contact material
2 stage filtration, you can select filter size(but may need wait for a while if we don’t have them in stock). Or you can us it as 1 stage filtration if you don’t install the filter cartridge for one of them.
High capacity, can run 100L-500L/Hour depends how clean of the liquid you want to filtrated and what the size of the filter you use.
Easy clean and maintenance

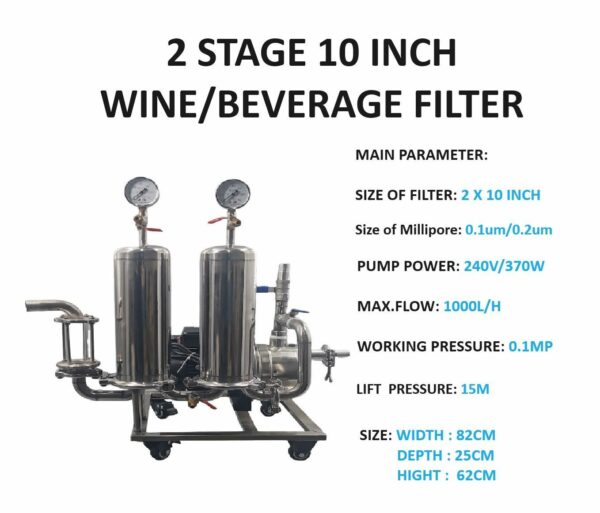

Specification:
All stainless steel for the filter cover and pipe contact material
23-23mm Barb for inlet and outlet
Filtration Capacity: 100L-500L/Hour depends on how clean the liquid and filter size
Head of pump: 15m
Suction of Pump: 8 m
Power rate: 370W
Size of filter:10 inch
Size of millipore: 0.1um and 0.2um
